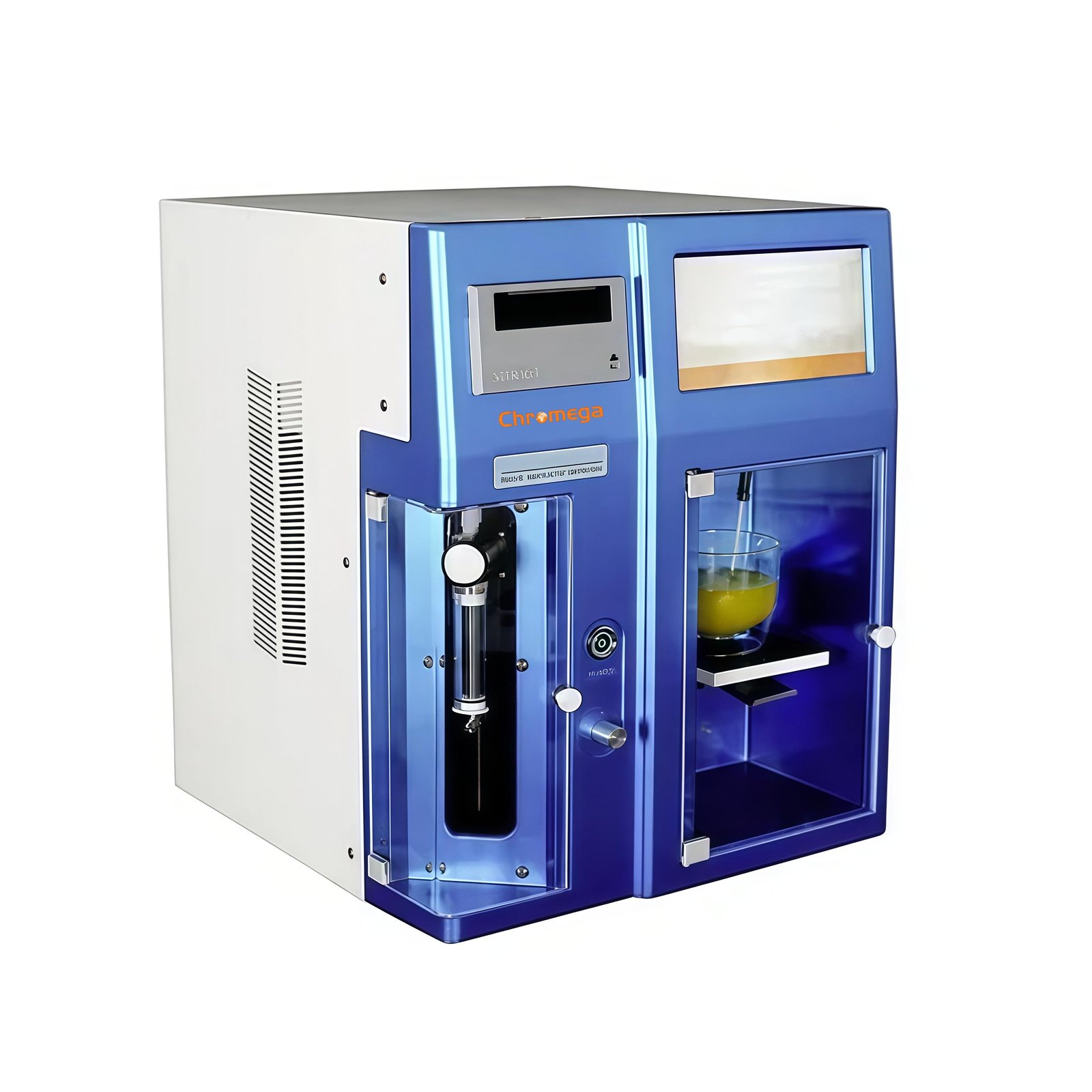

CHROMEGA Particle Counter is designed according to the principal of light obscuration to size and count the unsolvable particles in injectable solutions as well as fluids used for cleaning medical devices and precision parts.
It offers reliable and repeatable results, and meets USP, BP, and CHP requirements.
CHROMEGA Particle Counter is designed according to the principal of light obscuration to size and count the unsolvable particles in injectable solutions as well as fluids used for cleaning medical devices and precision parts. It offers reliable and repeatable results, and meets USP, BP, and CHP requirements.
Selectable standard in setting of USP788, GB8368-2005, YY0321-2000, USER SET
Wide test and setting range, calibration curve inbuilt to test particle distribution
Can set particle size
High resolution
Calibration in USP, ISO21501 requirement
Sampling on high precision and good repeatability
Magnetic stirrer stirring in even speed and do not produce bubble
Conveniently sampling. Can set sampler position to test injection (1-500ml) direction.
Dustproof window design to prevent environment pollution for test
Build-in printer, RS232 interface to link computer
Touch screen and user-friendly menu prompts
Parameter | Specification |
|---|---|
Particle Size Range | 1 µm – 500 µm |
Channels | 8, defined between 1.2 µm – 100 µm |
Sample Volume | 0.2 – 1000 ml, entire volume |
Sample Flow Rate | 5 ml/min – 100 ml/min |
Test Range | 0 – 9,999,999 particles |
Sample Volume Accuracy | < ±1% |
Sensor Resolution | > 95% (superior to standard specified in CHP 2010); < 10% (USP) |
Best Test Concentration | 0 – 18,000 particles/ml |
Accuracy | Stipulation ±5% |
Repeatability | RSD < 2% (Particle counts > 1000 particles per sample volume of 5 ml) |
Display Operation | 5.7” LCD touch screen, alternative standard keyboard for input |
Data Output | Built-in printer, RS232 interface to link computer |
Power Supply | 100 – 264 V, 50 Hz ±1%, < 80 W |
Environment Temperature | 10 ºC – 40 ºC |
