Ultraviolet-visible spectrophotometer Ultraviolet-visible spectrophotometer
Ultraviolet-visible spectrophotometer
Ultraviolet-visible spectrophotometer
Chromega Instruments Pvt Ltd

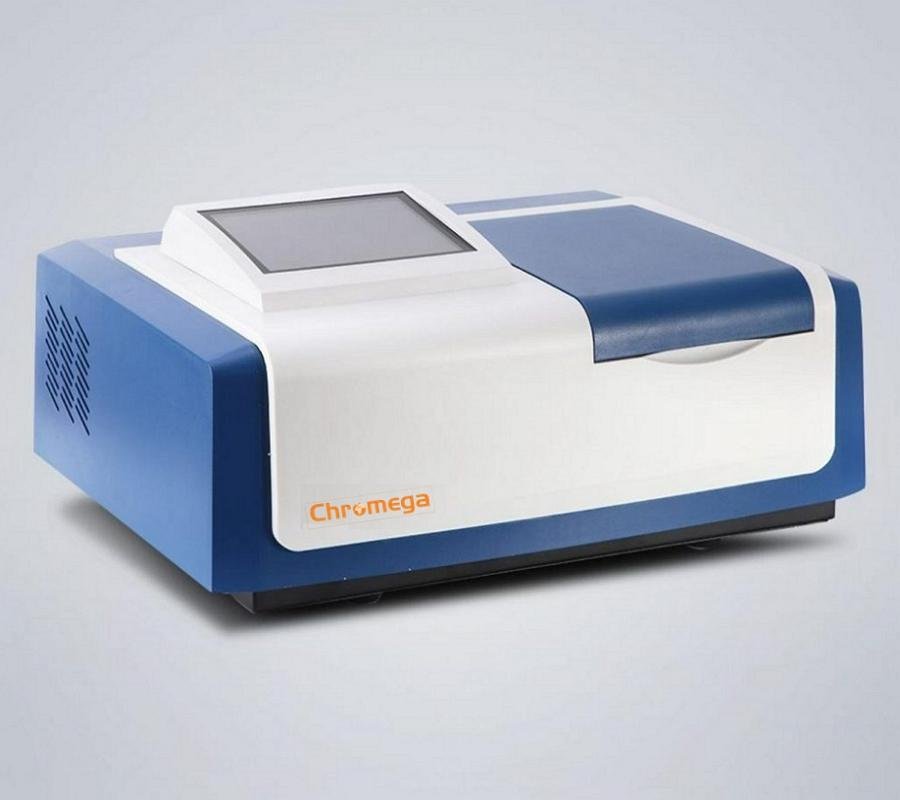

Ultraviolet-visible spectrophotometer

2000A and 2200 series spectrophotometers are practical and easy to operate. The main machine is equipped with a large screen point Matrix LCD display, can do photometric measurement and quantitative testing, etc., the standard curve map is directly displayed. Optional PC quantitative analysis software, enhanced quantitative test function, increased time scanning, data processing and reporting Report printing and other functions. Widely used in teaching and daily analysis.

Get A Quote Now
In stock Categories : Double Beam UV Vis Spectrophotometer

Ultraviolet-visible spectrophotometer

CI-EU-2000A/CI-EU-2200/CI-EV-2200

Ultraviolet-visible spectrophotometer

2000A and 2200 series spectrophotometers are practical and easy to operate. The main machine is equipped with a large screen point Matrix LCD display, can do photometric measurement and quantitative testing, etc., the standard curve map is directly displayed. Optional PC quantitative analysis software, enhanced quantitative test function, increased time scanning, data processing and reporting Report printing and other functions. Widely used in teaching and daily analysis.

Technical indicators and basic parameters

Parameter/Model number

CI-EU-2000A

CI-EU-2200

CI-EV-2200

Spectral bandwidth

4nm

4nm (optional 2nm)

4nm (optional 2nm)

Wavelength range

190~1020nm

190~1100nm

320~1100nm

Optical system

Single beam path, holographic diffraction grating

Wavelength accuracy

+/- 2.0 nm

+/- 0.8 nm

+/- 0.8 nm

Wavelength repeatability

0.5 nm or less

0.2 nm or less

0.2 nm or less

Wavelength setting

Automatic wavelength setting, wavelength resolution 0.1nm

Luminosity range

0 ~ 200%T, 0.3 ~ 3 a, 0 ~ 9999 c, 0 ~ 9999 f

Photometric accuracy

A (0 ~ 0.5 A), 0.002 mm +/- 0.004 A 0.5 ~ 1 (A), plus or minus 0.3% T (0 ~ 100%)

Photometric repeatability

0.001 A or less (0 ~ 0.5 A), 0.002 A or less (0.5 ~ 1 A), T (T) 0 ~ 100% to 0.2% or less

Stray Light

0.1% or less T 220/360 (nm)

Baseline drift (stability)

0.002 or less A/h (500 nm, 0A)

Noise

±0.2%T (0%T line); ±0.5%T (100%T line); ±0.001A (at 500nm)

Baseline flatness

Plus or minus 0.003A

Scan speed

High, medium, and low gears are adjustable

Detector

Imported silicon photodiode

Light Source

Imported long life tungsten lamp and deuterium lamp (no optical debugging)

Display

3 *128 x 64 dot-matrix LCD display

Keyboard

Tap film keys

Data interface

USB port

Printout

Microprinter; PC printer (online)

PC software

PC Quantitative Analysis software (optional)

Power supply

AC90-250V, 50/60Hz

Overall dimensions

430x320x195mm

Weight

12kg

12kg

10kg



CI-EU-2600R/CI-EV-2600R

Large screen scanning type quasi-double beam UV-VIS spectrophotometer

Instrument Features

  • Long life environmental protection flange seat type deuterium lamp, light change without optical debugging. The map and data can be saved in real time, and can be maintained with power off. It can be printed and exported to PC

  • Solid base plate and optical support, import key parts, durable

  • Optional PC quantitative analysis software, online operation is more convenient, expand the ability of data processing and storage

Specification Table

Specification

CI-EU-2600R

CI-EV-2600R

Spectral bandwidth

2.0 nm

Wavelength range

190~1100nm

320~1100nm

Optical system

Quasi-double beam ratio monitoring optical path, holographic diffraction grating

Wavelength accuracy

+/- 0.5 nm

Wavelength repeatability

0.2 nm or less

Wavelength setting

Automatic wavelength setting, wavelength resolution 0.1nm

Luminosity range

0 ~ 200%T, 0.3 ~ 3 a, 0 ~ 9999 c, 0 ~ 9999 f

Photometric accuracy

A (0 ~ 0.5 A), 0.002 mm +/- 0.004 A 0.5 ~ 1 (A), ±0.3% T T (0 ~ 100%)

Photometric repeatability

0.001 A or less (0 ~ 0.5 A), 0.002 A or less (0.5 ~ 1 A), T (T) 0 ~ 100% ≤ 0.15%

Stray Light

0.05% or less T 220/360 (nm)

Baseline drift (stability)

0.001 A/h or less (500 nm, 0 A)

Noise

±0.1%T (0%T line); ±0.3%T (100%T line); ±0.0005A (at 500nm)

Baseline flatness

±0.0015 A

Scan speed

High, medium, and low gears are adjustable

Detector

Imported silicon photodiode

Light Source

Imported long life tungsten lamp and deuterium lamp (no optical debugging)

Display

5 * 320 × 240 dot-matrix LCD display

Keyboard

Digital light touch film keys

Data interface

USB port

Printout

Microprinter; PC printer (online)

PC software

PC Scan Analysis software (optional)

Power supply

AC90-250V, 50/60Hz

Overall dimensions

545 × 468 × 245 mm

Weight

20 kg

18 kg
